Schematic diagrams for Laptops HP 14-bs series / HP ProBook 240 G6 Project: Quanta 0P1B
- Manufacturer: Quanta
- CPU: Intel Skylake / Kaby Lake
- VGA: AMD Exo / UMA
- RAM: DDR4
- SKU: 08396
- Unit: pcs
- Size: 1.43Mb
- Availability: In stock
- Tags:
4.50eur
3.50eur
Schematic diagrams for Laptops HP 14-bs series / HP ProBook 240 G6
Project: Quanta 0P1B

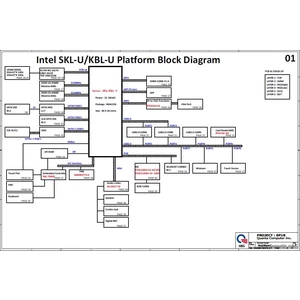

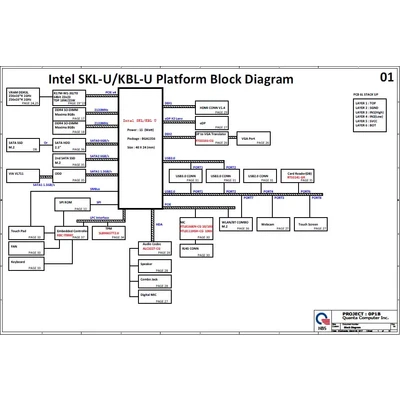

Schematic diagrams for motherboard marked DA0P1BMB6D0 REV:D, DA0P1BMB6D1 REV:D
Format: PDF
Total pages: 51

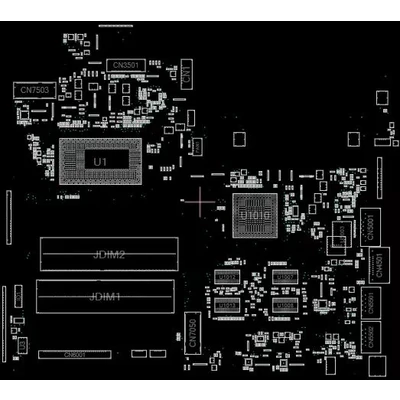

+ BoardView Rev: D
Format: BRD
The program for viewing is attached.

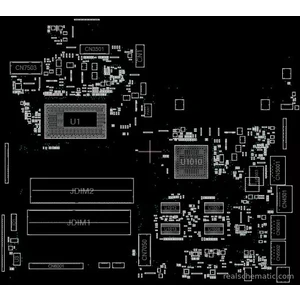

BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
