Lenovo ThinkBook 13s-IWL 14s-IWL PCB: BM5884A
SKU: 12463
Schematic diagrams for Laptops Lenovo ThinkBook 13s-IWL / 14s-IWL Project: Bitland BM5884A
- Manufacturer: Bitland
- CPU: Intel Whiskey Lake
- GPU: AMD Polaris 23 / UMA
- RAM: DDR4
- SKU: 12463
- Unit: pcs
- Size: 3.04Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

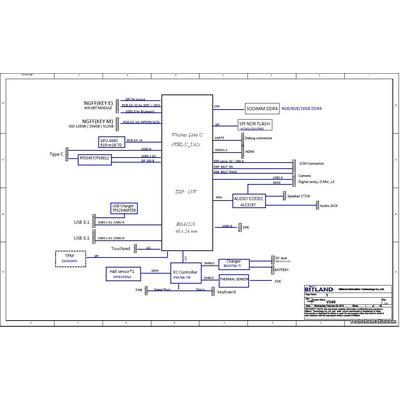

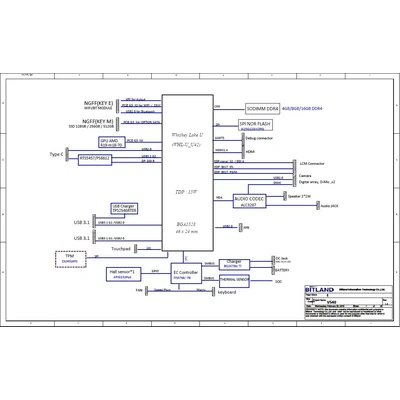

Schematic diagrams for Laptops Lenovo ThinkBook 13s-IWL / ThinkBook 14s-IWL
Project: Bitland BM5884A Rev: 1.2
Schematic diagrams for motherboard marked BM5884A_V1.2 and similar
Format: PDF
Total pages: 82

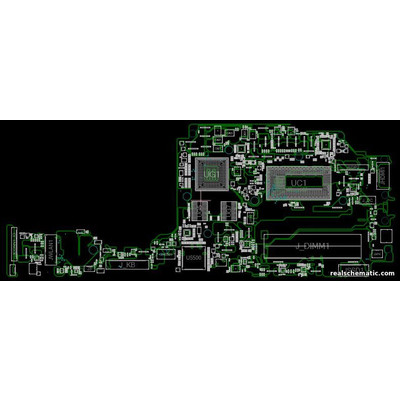

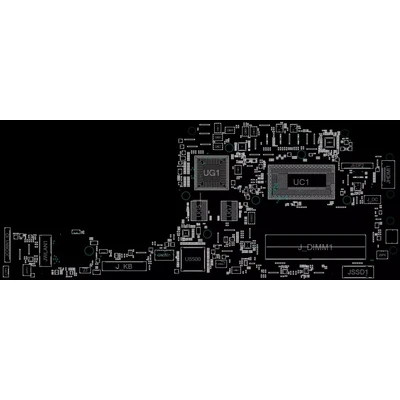

+ BoardView Rev: 1.2
Format: CAD
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
