Schematic diagrams for Laptops Lenovo ThinkPad E490 / E590 Project: NM-B911
- Manufacturer: Lenovo
- CPU: Intel Whiskey Lake
- VGA: AMD R17M
- RAM: DDR4
- SKU: 12412
- Unit: pcs
- Size: 4.08Mb
- Availability: In stock
- Tags:
5.25eur
Schematic diagrams for Laptops Lenovo ThinkPad E490 / Lenovo ThinkPad E590
Project: NM-B911
Schematic diagrams for motherboard marked FE490/FE590/FE480 NM-B911
Format: PDF
Total pages: 99

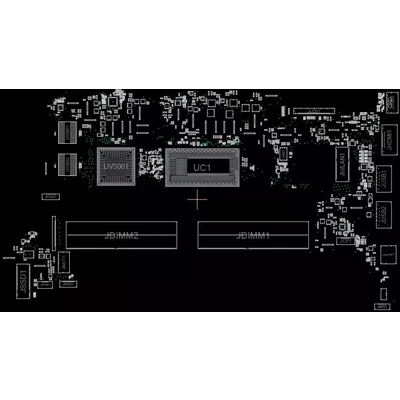

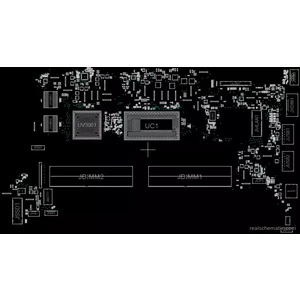

+ BoardView Rev: 1.0 ( shows the values / labeling of the components )
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
