Lenovo ThinkPad X1 Carbon Gen 7, X1 Yoga Gen 4
SKU: 12469
Schematic diagrams for Laptops Lenovo ThinkPad X1 Carbon 7th Gen, ThinkPad X1 Yoga 4th Gen Project: NM-B861
- Manufacturer: Lenovo
- CPU: Intel Comet Lake / Whiskey Lake
- GPU: UMA
- RAM: LPDDR3
- SKU: 12469
- Unit: pcs
- Size: 2.00Mb
- Availability: In stock
- Tags:
4.50eur
3.75eur

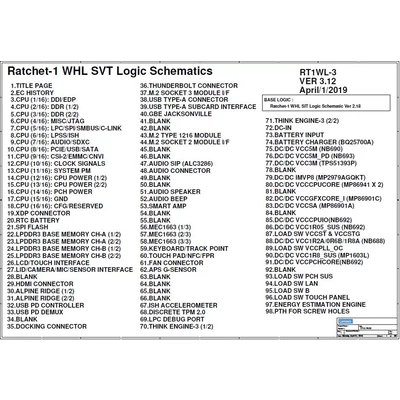

Schematic diagrams for Laptops Lenovo ThinkPad X1 Carbon 7th Gen / Lenovo ThinkPad X1 Yoga 4th Gen
Project: NM-B861 Rev: 1.0
Schematic diagrams for motherboard marked FX490 NM-B861
Format: PDF
Total pages: 98
+ BoardView Rev: 1.0
The program for viewing is attached.

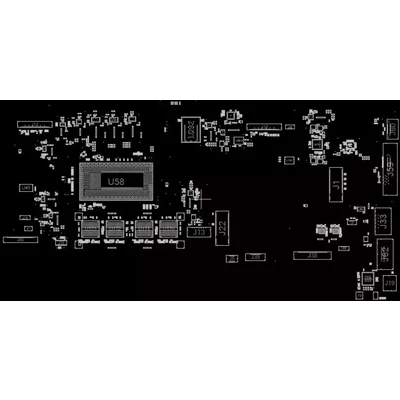

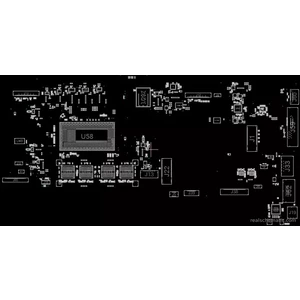

BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
