MSI Creator 17M GF75 Thin 9/10 series MS-17F3

5.0/3
SKU: 02648
BoardView for Laptops MSI Creator 17M series / MSI GF75 Thin series Project: MSI MS-17F31
  • Manufacturer: MSI
  • CPU: Intel Coffee Lake H / Comet Lake H
  • VGA: Nvidia N18E / N19E
  • RAM: DDR4
  • SKU: 02648
  • Unit: pcs
  • Size: 635.4Kb
  • Availability: In stock
  • Tags: Thin, GF75, 10SE, 10SD, 9SE, MSI, Creator, 17M, 9SD
4.50eur

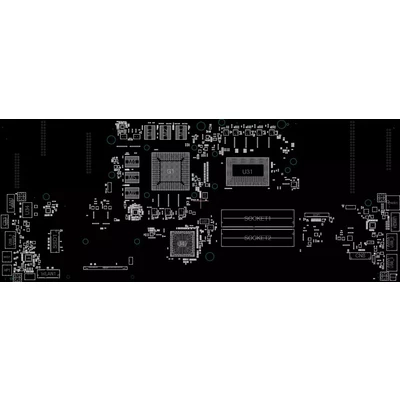

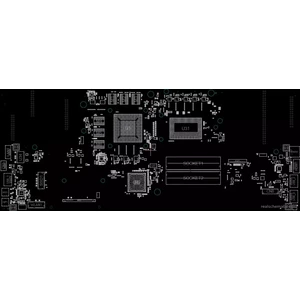

BoardView for Laptops MSI Creator 17M series & MSI GF75 THIN 9SD / 9SE / 10SD / 10SE series

Project: MSI MS-17F31 Rev 1.1

BoardView for motherboard marked MS-17F31 VER:1.1

Two sides

Shows electrical circuits between components and the names of these circuits (Net names)

Format: CAD

The program for viewing is attached.



BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
