ASUS ROG Chimera G703 G703G G703GS
SKU: 03587
Schematic diagrams for Laptop ASUS ROG Chimera G703GS Project: ASUS G703GS
- Manufacturer: ASUS
- CPU: Intel Coffee Lake H
- GPU: Nvidia N17E
- RAM: DDR4
- SKU: 03587
- Unit: pcs
- Size: 4.02Mb
- Availability: In stock
- Tags:
5.25eur
4.50eur
Schematic diagrams for Laptop ASUS ROG Chimera G703GS
Project: ASUS G703GS

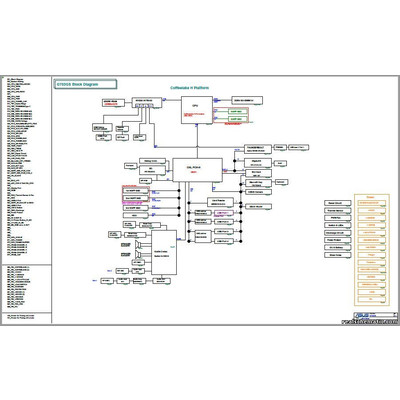

Schematic diagrams for motherboard marked G703GS MAIN BOARD
Format: PDF
Total pages: 103

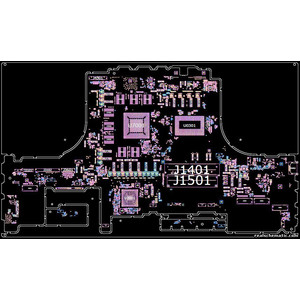

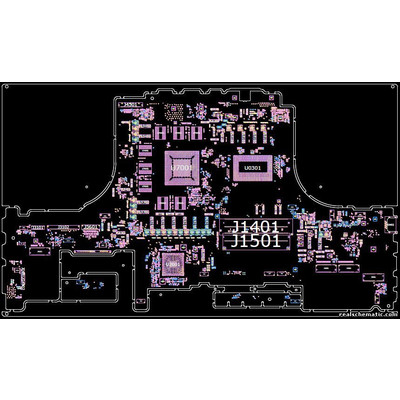

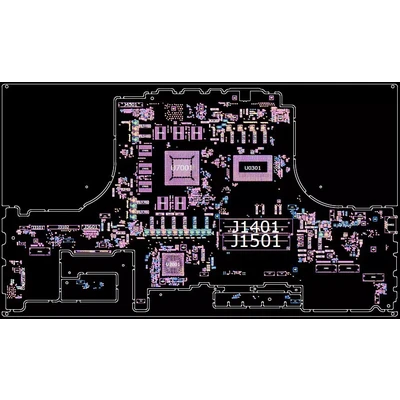

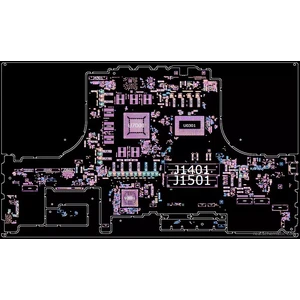

+ BoardView in PDF format Rev: 2.0

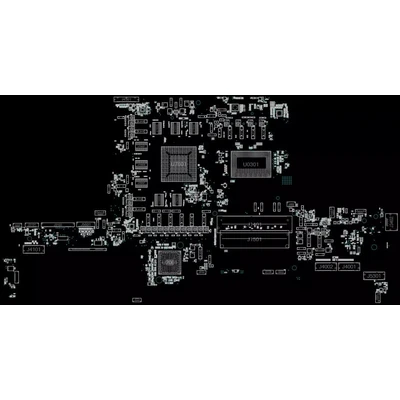

+ BoardView in FZ format Rev: 2.1 ( shows the values / labeling of the components )
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
