HP 255 G8 HP Laptop 15-gw 15s-gr 15s-gy series
SKU: 08438
Schematic diagrams for Laptops HP 255 G8 & HP 15-gw, 15s-gr, 15s-gy series Project: LA-H32AP
- Manufacturer: Compal
- CPU: AMD Picasso / Dali
- GPU: AMD Topaz / UMA
- RAM: DDR4
- SKU: 08438
- Unit: pcs
- Size: 2.63Mb
- Availability: In stock
- Tags:
5.25eur
4.50eur
Schematic diagrams for Laptops HP 255 G8 & HP 15-gw / 15s-gr / 15s-gy series
Project: Compal LA-H32AP

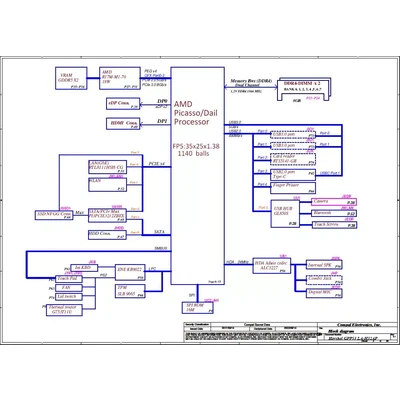

Schematic diagrams for motherboard marked GPP53 LA-H32AP
Format: PDF
Total pages: 95

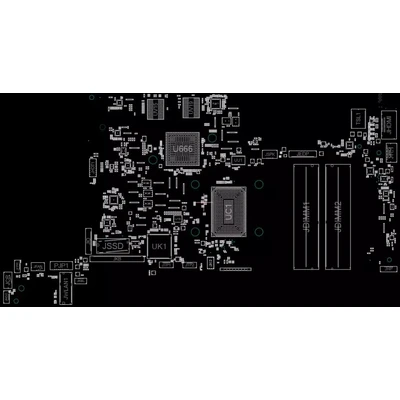

+ BoardView
Format: CAD
The program for viewing is attached.

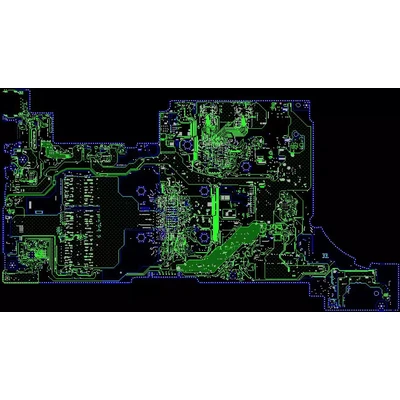

Multilayer BoardView in BRD format is available (pictured #3, not included, price on request)
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
