Schematic diagrams for Laptops Lenovo ThinkPad X395 / ThinkPad T495s Project: NM-C181
- Manufacturer: Lenovo
- CPU: AMD Picasso
- VGA: UMA
- RAM: DDR4
- SKU: 12531
- Unit: pcs
- Size: 3.66Mb
- Availability: In stock
- Tags:
5.25eur
Schematic diagrams for Laptops Lenovo ThinkPad X395 / Lenovo ThinkPad T495s
Project: NM-C181 Rev: 1.0

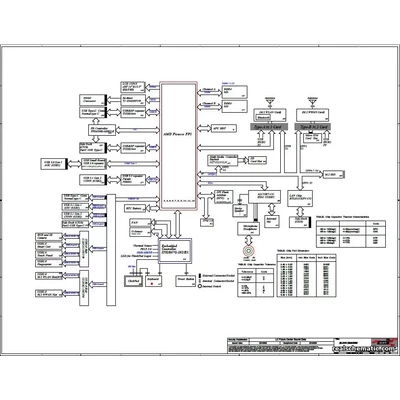

Schematic diagrams for motherboard marked FA391/FA491 NM-C181
Format: PDF
Total pages: 67

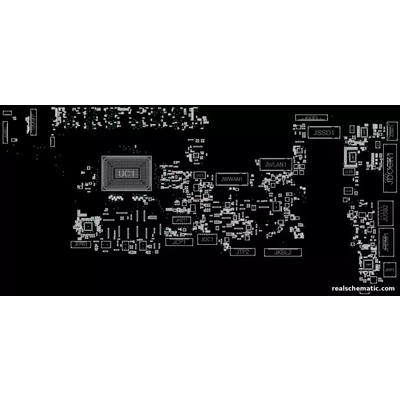

+ BoardView Rev: 1.0 ( shows the values / labeling of the components )
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
