BoardView for Laptops ASUS ROG Strix G17 G713P / G713PI / G713PV Project: G713P-MP-VGT
- Manufacturer: ASUS
- CPU: AMD Dragon Range HX
- VGA: Nvidia GN21
- RAM: DDR5
- SKU: 03693
- Unit: pcs
- Size: 201.8Kb
- Availability: In stock
- Tags:
5.25eur
BoardView for Laptops ASUS ROG Strix G17 G713PI / ASUS ROG Strix G17 G713PV
Project: Inventec G713P-MP-VGT
BoardView for motherboard marked G713P-MP-VGT 6050A3468901-MB-A01
Two sides.
Format: FZ ( shows the values / labeling of the components )
Shows positional designations, electrical circuits between components, and other details.
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
Similar products

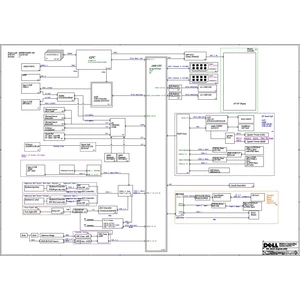

Dell Alienware M16 R1 M18 R1 AMD PCB: 213259-1
Schematic diagrams for Laptops Dell Alienware M16 R1 / Alienware M18 R1 Project: INFINITY A+N( MB2 )
7.00eur
- Availability:In stock

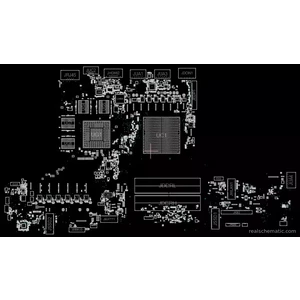

Lenovo Legion Pro 5 16ARX8 R9000P ARX8
