Lenovo Legion Pro 5 16ARX8 R9000P ARX8
SKU: 12662
Schematics and BoardView for Laptops Lenovo Legion Pro 5 16ARX8 / Legion R9000P ARX8 Project: NM-F251
- Manufacturer: Lenovo
- CPU: AMD Dragon Range HX (FL1)
- GPU: Nvidia GN21
- RAM: DDR5
- SKU: 12662
- Unit: pcs
- Size: 2.65Mb
- Availability: In stock
- Tags:
6.00eur
5.25eur
Schematic diagrams for Laptops Lenovo Legion Pro 5 16ARX8 / Lenovo Legion R9000P ARX8
Project: NM-F251 Rev: 1.0
Schematic diagrams for motherboard marked KY585 NM-F251 Rev:1.0
Format: PDF
Total pages: 79
Format: CAD full ( shows the values / labeling of the components )
The program for viewing is attached.

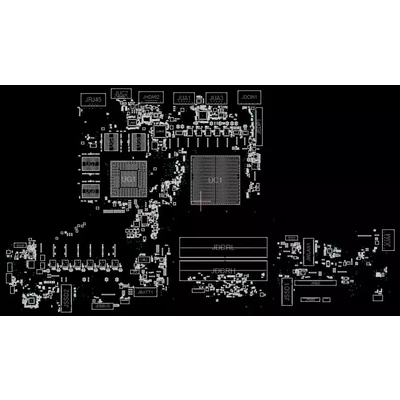

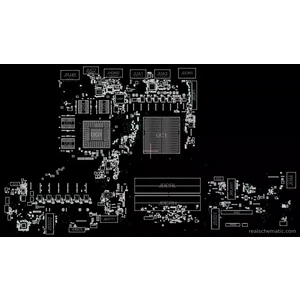

BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
