Schematic diagrams for Laptops Lenovo ThinkPad T14 Gen 4 / T16 Gen 2 AMD Project: NM-F261
- Manufacturer: Lenovo
- CPU: AMD Phoenix
- VGA: UMA
- RAM: LPDDR5
- SKU: 12621
- Unit: pcs
- Size: 3.38Mb
- Availability: In stock
- Tags:
5.25eur
Schematic diagrams for Laptops Lenovo ThinkPad T14 Gen 4 AMD / Lenovo ThinkPad T16 Gen 2 AMD
Project: NM-F261
Schematic diagrams for motherboard marked KT4D2/KP4D5/KT6D2/KP6D5 NM-F261
Format: PDF
Total pages: 60

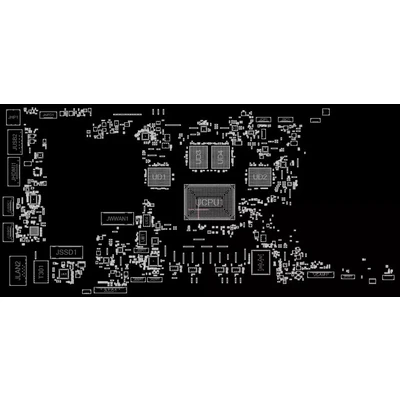

+ BoardView Rev: 1.0
Format: CAD
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
