Schematic diagrams for ASUS ROG Ally RC71L 2023 Gaming Console Project: NR2301L
- Manufacturer: ASUS
- CPU: AMD Phoenix
- VGA: UMA / External GPU
- RAM: LPDDR5
- SKU: 03717
- Unit: pcs
- Size: 2.96Mb
- Availability: In stock
- Tags:
5.25eur
Schematic diagrams for ASUS ROG Ally RC71L 2023 Gaming Console
Project: ASUS NR2301L Rev: 2.1

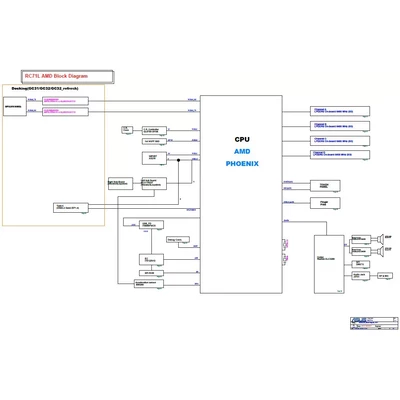

Schematic diagrams for motherboard marked NR2301L_MB R2.1
Format: PDF
Total pages: 55

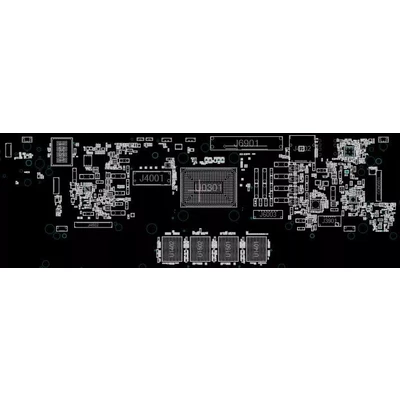

+ BoardView for Mainboard Rev: 2.1
Format: CAD full ( shows the values / labeling of the components )
The program for viewing is attached.
+ BoardView Rev: 2.1 for Sub-boards: NR2301L_L_ITE_BOARD + NR2301L_R_BOARD
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
