Schematic diagrams for Laptops Lenovo Thinkpad E14 Gen 4 / E15 Gen 4 Project: NM-E501
- Manufacturer: Lenovo
- CPU: AMD Barcelo
- VGA: UMA
- RAM: DDR4
- SKU: 12647
- Unit: pcs
- Size: 3.83Mb
- Availability: In stock
- Tags:
5.25eur
Schematic diagrams for Laptops Lenovo Thinkpad E14 Gen 4 AMD / Thinkpad E15 Gen 4 AMD
Project: NM-E501

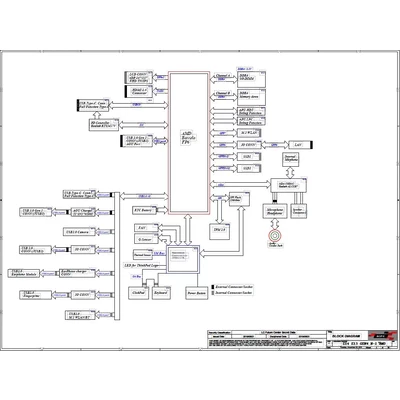

Schematic diagrams for motherboard marked JE443/JE543 NM-E501
+ schematic diagrams for Sub-boards JE443 NS-E501, JE543 NS-E502
Format: PDF
Total pages: 66

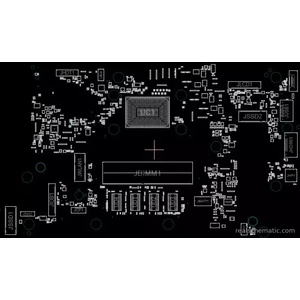

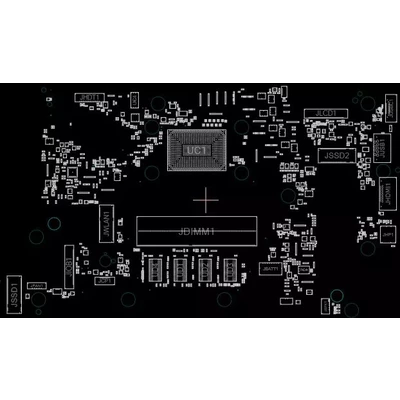

+ BoardView for Mainboard Rev: 1.0
+ BoardView for Sub-boards JE443 NS-E501, JE543 NS-E502 Rev: 1.0
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
