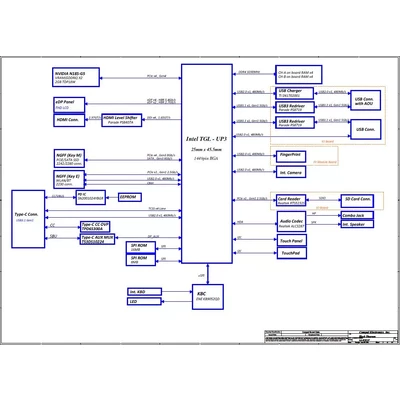

Schematic diagrams for Laptop Lenovo IdeaPad 5 14ITL05 / 5-14ITL05 Project: LA-K321P
- Manufacturer: Compal
- CPU: Intel Tiger Lake
- VGA: Nvidia N18S / UMA
- RAM: DDR4
- SKU: 12650
- Unit: pcs
- Size: 2.88Mb
- Availability: In stock
- Tags:
5.25eur
Schematic diagrams for Laptop Lenovo IdeaPad 5 14ITL05 / 5-14ITL05
Project: Compal LA-K321P
Schematic diagrams for motherboard marked GLMS1 LA-K321P Rev:1B and similar
Format: PDF
Total pages: 93

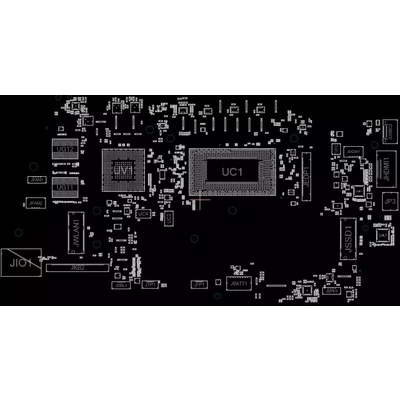

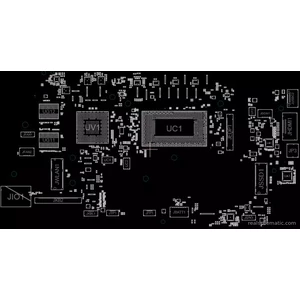

+ BoardView Rev: 1B
Format: CAD full ( shows the values / labeling of the components )
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
