Schematic diagrams for Laptops Lenovo Yoga Slim 7 Pro 14IHU5 / 14ITL5 Project: NM-D231
- Manufacturer: Lenovo
- CPU: Intel Tiger Lake
- VGA: Nvidia N18S / UMA
- RAM: LPDDR4X
- SKU: 12544
- Unit: pcs
- Size: 3.67Mb
- Availability: In stock
- Tags:
5.25eur
Schematic diagrams for Laptops Lenovo Yoga Slim 7 Pro 14IHU5 / Lenovo Yoga Slim 7 Pro 14ITL5
Project: NM-D231

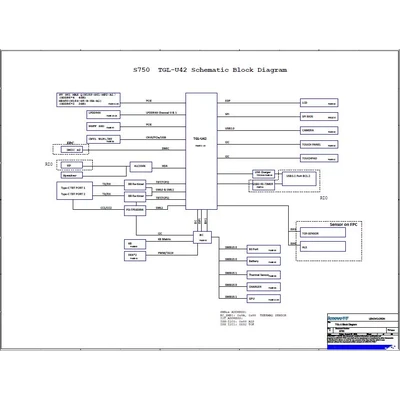

Schematic diagrams for motherboard marked HS450_NM_D231_SVT
Format: PDF ( with a working search )
+ IO Board schematic diagrams
Total pages: 72
+ BoardView Rev: 1.0
The program for viewing is attached.

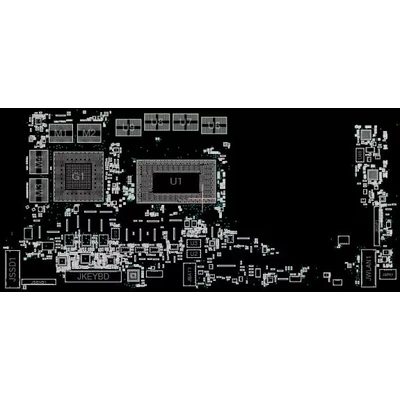

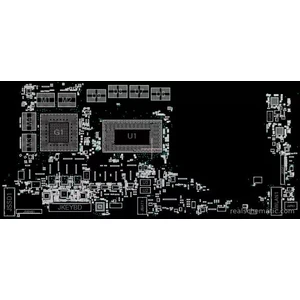

BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
