Lenovo IdeaPad Slim 3 15IAN8 PCB: NM-E901
SKU: 12661
Schematic diagrams for Laptop Lenovo IdeaPad Slim 3 15IAN8 Project: NM-E901
- Manufacturer: Lenovo
- CPU: Intel Alder Lake N
- GPU: UMA
- RAM: LPDDR5
- SKU: 12661
- Unit: pcs
- Size: 4.59Mb
- Availability: In stock
- Tags:
5.25eur
4.50eur
Schematic diagrams for Laptop Lenovo IdeaPad Slim 3 15IAN8
Project: NM-E901

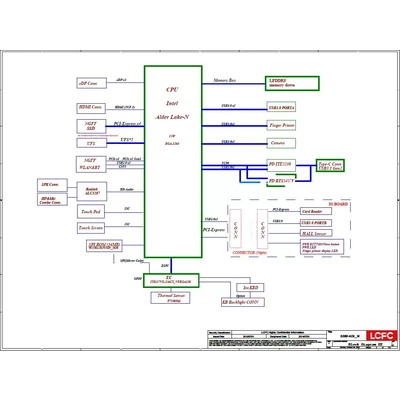

Schematic diagrams for motherboard marked KS480&KS580 NM-E901
Format: PDF
Total pages: 111

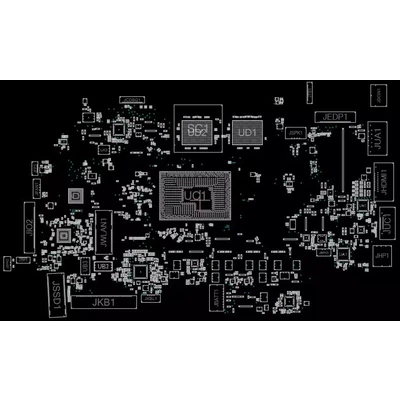

+ BoardView Rev: 1.0 ( shows the values / labeling of the components )
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
