Schematic diagrams for Laptops Acer Aspire 3 A315-510P / A314-36M Project: NB6301A
- Manufacturer: Huaqin
- CPU: Intel Alder Lake N
- VGA: UMA
- RAM: LPDDR5
- SKU: 00690
- Unit: pcs
- Size: 2.20Mb
- Availability: In stock
- Tags:
5.25eur
Schematic diagrams for Laptops Acer Aspire 3 A315-510P / Acer Aspire 3 Slim A314-36M
Project: Huaqin NB6301A Rev: 3.0
Schematic diagrams for motherboard marked NB6301A_MB_V3
Format: PDF
Total pages: 119

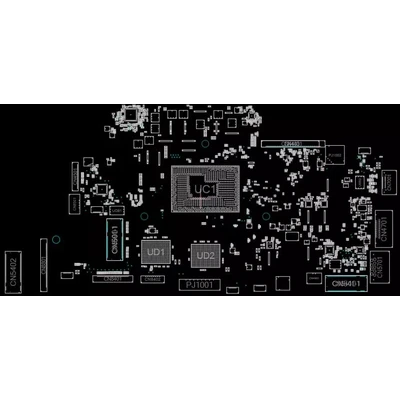

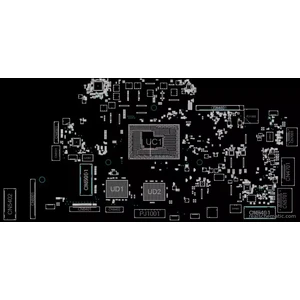

+ BoardView Rev: V3
Format: FZ ( shows the values / labeling of the components )
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
