Lenovo ThinkPad L14 Gen 5 L16 Gen 1 Intel
SKU: 12668

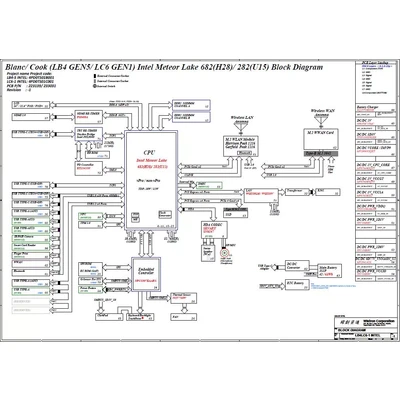

Schematic diagrams for Laptops Lenovo ThinkPad L14 Gen 5 / L16 Gen 1 Project: Wistron LB4 / LC6
- Manufacturer: Wistron
- CPU: Intel Meteor Lake
- GPU: UMA
- RAM: DDR5
- SKU: 12668
- Unit: pcs
- Size: 1.97Mb
- Availability: In stock
- Tags:
7.00eur
6.25eur
Schematic diagrams for Laptops Lenovo ThinkPad L14 Gen 5 / Lenovo ThinkPad L16 Gen 1
Project: Wistron Wistron ' LB4 / LC6 '
Schematic diagrams for motherboard marked LB4-1 INTEL 223139-1, LC6-1 INTEL 233031-1
Format: PDF
Total pages: 106

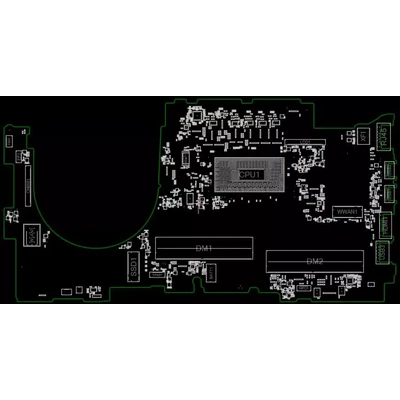

BoardView for motherboard in CAD format is available (not included in price, price on request)
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
