MSI GF65 Thin 9SD 9SE 10SER 10SDR series MS-16W1
SKU: 02609
Schematic diagrams for Laptops MSI GF65 THIN 9/10 series & MSI MS-16W1 series Project: MSI MS-16W11
- Manufacturer: MSI
- CPU: Intel Coffee Lake H / Comet Lake H
- GPU: Nvidia N18E
- RAM: DDR4
- SKU: 02609
- Unit: pcs
- Size: 2.52Mb
- Availability: In stock
- Tags:
6.00eur
5.25eur

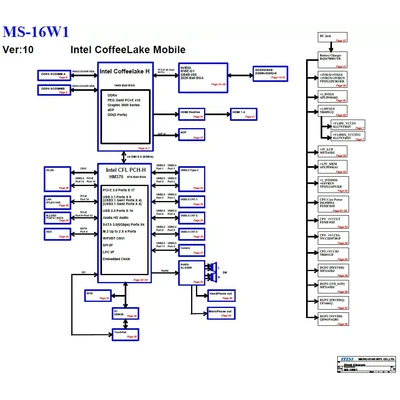

Schematic diagrams for Laptops MSI GF65 THIN 9SD / 9SE / 10SER / 10SDR series & MSI MS-16W1 series
Project: MSI MS-16W11 Rev: 1.0
Schematic diagrams for motherboards marked MS-16W11 VER:1.0, MS-16W11 VER:1.1
Format: PDF
Total pages: 66

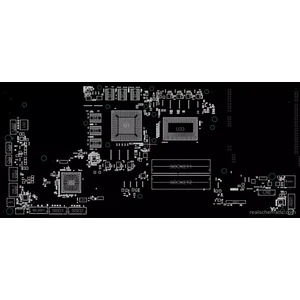

+ BoardView Rev: 1.0
Format: CAD
The program for viewing is attached.
BoardView Rev: 1.1 is available in CAD format (not included in price, price on request)

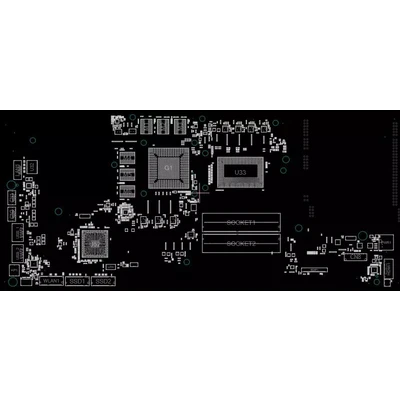

BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
