Acer Aspire A114-33 A314-35 PCB: Z8Y
SKU: 00612
Schematic diagrams for Laptops Acer Aspire A114-33, Aspire A314-35 Project: Quanta Z8Y
- Manufacturer: Quanta
- CPU: Intel Jasper Lake
- GPU: UMA
- RAM: DDR4
- SKU: 00612
- Unit: pcs
- Size: 2.09Mb
- Availability: In stock
- Tags:
5.25eur
4.50eur

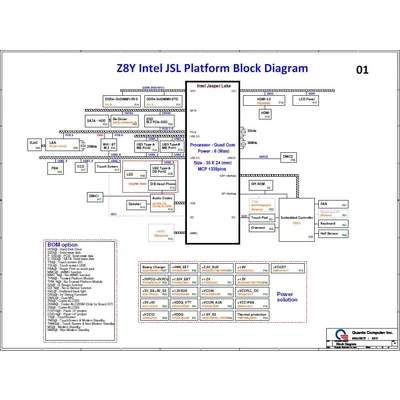

Schematic diagrams for Laptops Acer Aspire 1 A114-33 / Acer Aspire 3 A314-35
Project: Quanta Z8Y
Schematic diagrams for motherboard marked DA0Z8YMB8F0 REV:F
Format: PDF
+ Sub-board schematic diagram
Total pages: 42

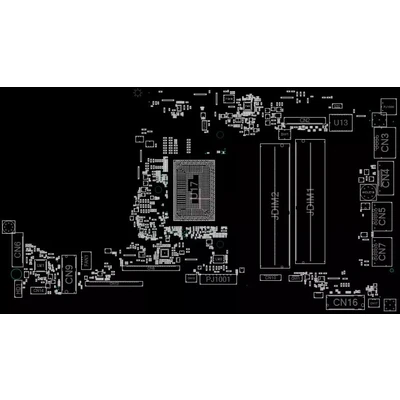

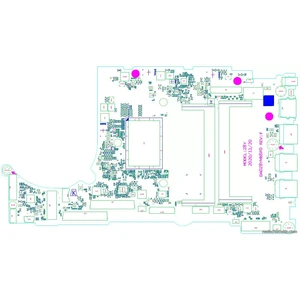

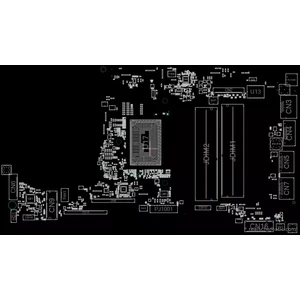

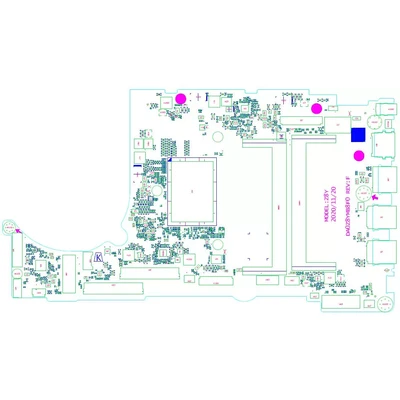

+ BoardView ( two revisions )
Format: CAD + PDF
The program for viewing is attached.
Multilayer BoardView REV:F available in BRD format ( not included in the price, price on request ).
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
