Schematic diagrams for HP Laptop 14-d series / Laptop 14s-dq series Project: Quanta 0PAK
- Manufacturer: Quanta
- CPU: Intel Jasper Lake
- VGA: UMA
- RAM: DDR4
- SKU: 08519
- Unit: pcs
- Size: 1.34Mb
- Availability: In stock
- Tags:
5.25eur
Schematic diagrams for HP Laptop 14-d series / Laptop 14s-dq series
Project: Quanta 0PAK
Schematic diagrams for motherboard marked 0PAK DA0PAKMB6F0 REV:F
Format: PDF
Total pages: 43
+ BoardView Rev: F
Format: CAD full ( shows the values / labeling of the components )
The program for viewing is attached.

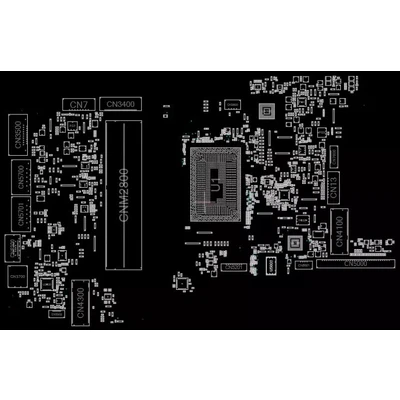

BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
