ASUS Pro Essential PU551J PU551JA PU551JD
SKU: 03593
Schematic diagrams for Laptops ASUS Pro PU551J / PU551JA / PU551JD Project: PU551JA
- Manufacturer: ASUS
- CPU: Intel Socket 947
- GPU: Nvidia N15V / UMA
- RAM: DDR3L
- SKU: 03593
- Unit: pcs
- Size: 5.24Mb
- Availability: In stock
- Tags:
5.25eur
4.50eur
Schematic diagrams for Laptops ASUS PRO ESSENTIAL PU551J / PU551JA / PU551JD
Project: ASUS PU551JA Rev: 2.0

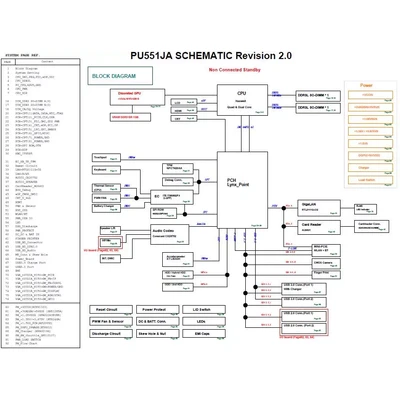

Schematics and BoardView for motherboard marked PU551JA MAIN BOARD REV. 2.0
Format: PDF
Total pages: 68

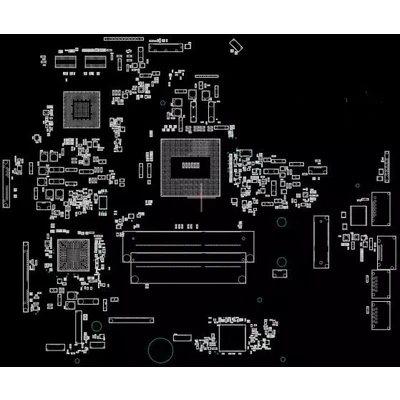

+ BoardView Rev: 2.0

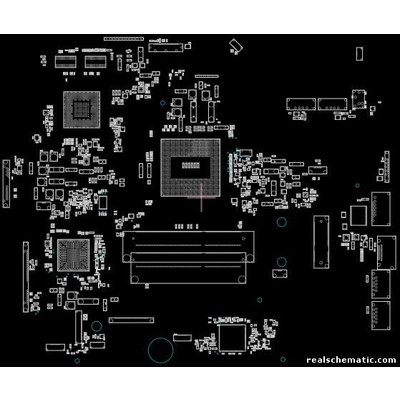

Format: FZ ( shows the values / labeling of the components )
The program for viewing is attached.
+ BoardView for Sub-board
+ Short Repair Guide

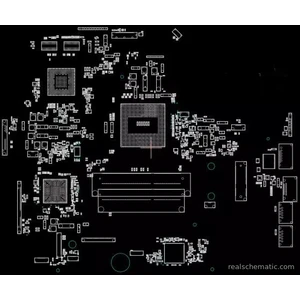

BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
