HP ENVY TouchSmart 15-j series
SKU: 08247
Schematic diagrams for Laptops HP ENVY 15-j series Project: Inventec ' 15SBGV2 / 15SBGU '
- Manufacturer: Inventec
- SKU: 08247
- Unit: pcs
- Size: 2.28Mb
- Availability: In stock
- Tags:
5.25eur
4.50eur

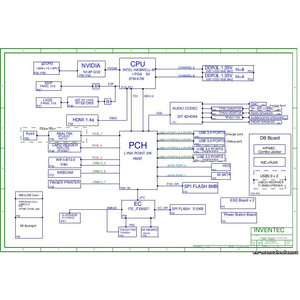

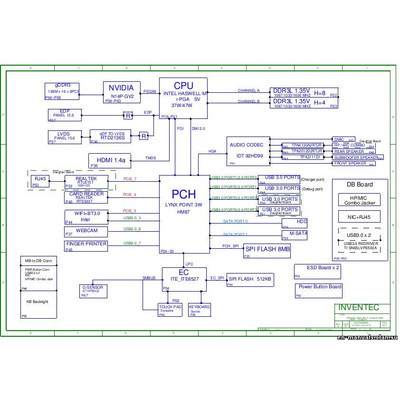

Schematic diagrams for Laptops HP ENVY 15-j series / HP ENVY TouchSmart 15-j series
Project: Inventec ' 15SBGV2 / 15SBGU '
Schematic diagrams for PCB with markings 15SBGU-6050A2547701-MB-A02, 15SBGV2D-6050A2548101-MB-A02
Format: PDF
Total pages: 70

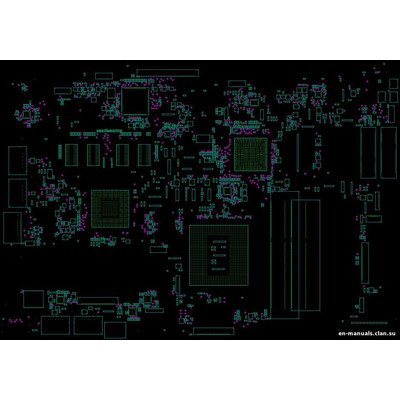

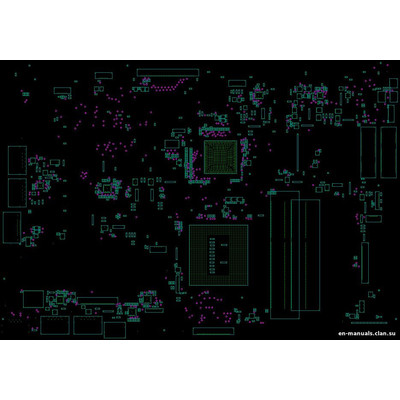

+ BoardView :
1. Rev: 15SBGU-6050A2547701-MB-A02
2. Rev: 15SBGV2D-6050A2548101-MB-A02
The program for viewing is attached.
