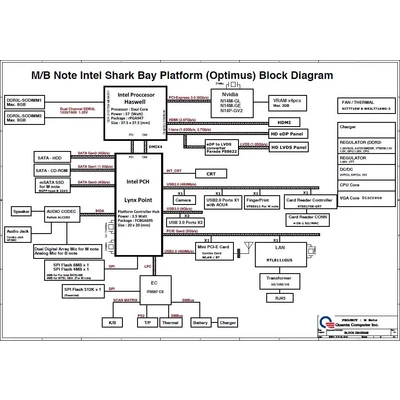

Schematic diagrams for Laptops Lenovo IdeaPad B5400 / M5400 Project: Quanta BM5
- Manufacturer: Quanta
- CPU: Intel Socket 947 (G3)
- VGA: Nvidia N14M / N14P / N15V / UMA
- RAM: DDR3L
- SKU: 12252
- Unit: pcs
- Size: 1.58Mb
- Availability: In stock
- Tags:
4.50eur
Schematic diagrams for Laptops Lenovo IdeaPad B5400 / Lenovo IdeaPad M5400
Project: Quanta BM5
Schematic diagrams for motherboard marked DA0BM5MB8D0 REV:D
Format: PDF
Total pages: 61
+ BoardView
Format: BRD
The program for viewing is attached.

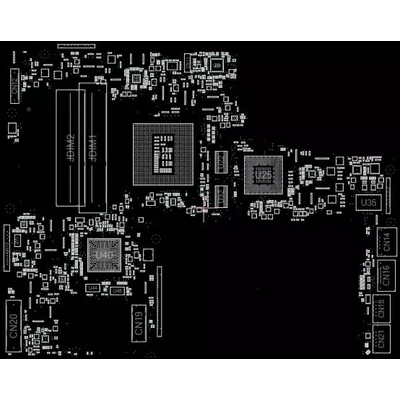

BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
