ASUS VivoBook S15 S5506 S5506MA S16 S5606 S5606MA
SKU: 03742
BoardView for Laptops ASUS VivoBook S 15 OLED S5506, S5506MA / S 16 OLED S5606, S5606MA
- Manufacturer: ASUS
- CPU: Intel Meteor Lake H
- GPU: UMA
- RAM: LPDDR5X
- SKU: 03742
- Unit: pcs
- Size: 128.1Kb
- Availability: In stock
- Tags:
5.25eur
4.50eur
BoardView for Laptops ASUS VivoBook S 15 OLED S5506 / S5506MA & S 16 OLED S5606 / S5606MA
Project: Inventec S5406MA-MP-VGT
BoardView for motherboard marked S5406MA-MP-VGT 6050A3553002-MB-A01
Two sides.

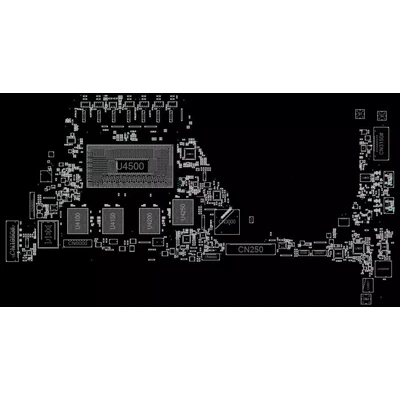

Format: CAD full ( shows the values / labeling of the components )
Shows positional designations, electrical circuits between components, and other details.
The program for viewing is attached.
+ BoardView for IO Board
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
