BoardView for Laptops ASUS TUF Gaming A15 FA507R / FA507RW & A17 FA707R / FA707RW Project: Quanta NJM
- Manufacturer: Quanta
- CPU: AMD Rembrandt H
- GPU: Nvidia GN20
- RAM: DDR5
- SKU: 03744
- Unit: pcs
- Size: 791.0Kb
- Availability: In stock
- Tags:
5.25eur
4.25eur
BoardView for Laptops ASUS TUF Gaming A15 FA507R / FA507RW & ASUS TUF Gaming A17 FA707R / FA707RW
Project: Quanta NJM

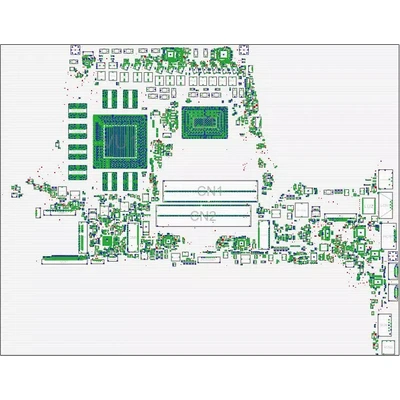

BoardView for motherboard marked NJM DANJMMB2AA0 REV:A
Two sides.
Shows positional designations, electrical circuits between components, and other details.
The program for viewing is attached.
BoardView is a layout of components on a printed circuit board (PCB) with a wide range of repair functions.
